Galvo Head RC1001 SG7110 For Fiber Laser Marking Scanning Scanner Double Red Dot

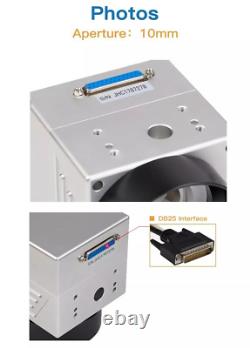

Galvo Head RC1001 SG7110 For Fiber Laser Marking Scanning Scanner Double Red Dot. 1 x RC1001 or SG7110 Fiber Laser Scanning Galvo Head (with Double red light). 1 x 60W 15V DC Switching Power supply. Wavelength:10.6um 1064nm 355nm accuracy and error.

Repeat positioning accuracy/electrical value:8? Long-term drift (8 hours of continuous work). Zero offset (batch origin error).

Average working current:2.0A. Position signal input impedance:0K? Position signal input proportional coefficient:0.33V/°. X, Y lens center distance:13.5mm. SG7110 galvanometer is mainly suitable for high-speed and online flying marking.

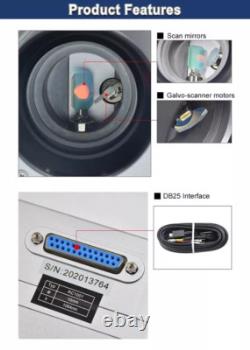

The standard incident spot diameter is 10mm. The galvanometer system has the characteristics of zero drift, fast speed, small size, low temperature and stable and reliable operation. The comprehensive performance indicators have reached the international professional level and have obtained a number of national patents. Adopted the photoelectric sensors which imported from America, and owned the proprietary intellectual property rights. Differential photoelectric sensor for accurate detection of motor rotor position, good linearity, lower drift, high resolution and repeat positioning.

Accurate load design for 10 mm mirrors, high accuracy of motor assembly, reasonable structure, very small static friction coefficient and zero offset, all ensured the best dynamic characteristics for the whole system. Drives with advanced detection ability of position and speed, greatly improved the dynamic response performance and scanning speed of the whole system. Design of overload, over-current and reverse connect protection, makes the system running more reliable. The whole system adopted the optimization Designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.

This scanner system solved the common problems of motor temperature drift, signal interference and zero drift, etc. Item must be in it's original condition and no physical damage.
